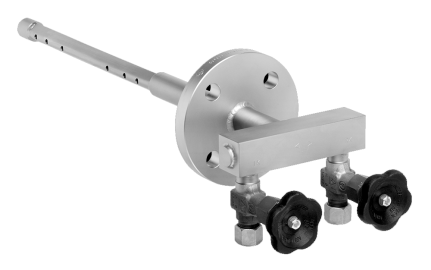

SDF-Sensors: Averaging pitot tubes for steam

For accurate flow measurement of low, middle and high pressure steam at saturated or superheated conditions

Description

SDF-Sensors for steam are often used wherever flow or heat quantity of superheated or saturated steam need to be measured. They have been proven in the field to be reliable, stable and accurate for more than 35 years.

Due to the robust technology and the simple principle of measurement, SDF-Sensors can be used under difficult conditions and offer considerable advantages over other measuring technology from easy installation to long-term measuring stability.

Additional advantages are the possibilities of bidirectional flow measurement as well as the integration of temperature and pressure measurement to calculate the current operating density. This is supported by the AccuMind® flow computer which can calculate the current steam and heat quantity.





Option with FASTLOK Version

With the FASTLOK version for steam, the SDF-sensor can be inserted or retracted into the pipe without interrupting plant operation. They are available in four different versions including a high-pressure option for pressures up to PN100 (600# ANSI). For ease of insertion and retraction, the FASTLOK version can be equipped with an integral gear drive.

SDF-Sensors for steam offer practical advantages wherever



  • a simple, fast and low-cost installation is required,
  • an existing pipeline needs to be retrofitted with a flow meter with minimal installation efforts,
  • space is limited with short straight pipe runs,
  • other flow measuring principles are not suitable due to large pipe sizes, high pressures and/or high temperatures,
  • operation of a pipeline cannot be interrupted or shutdown during installation,
  • low pressure losses are required for economical or technical reasons.

Applications

Further information

Product brochure

EN | DE | PT

Installation and operating manual

EN | DE | PT | FR | NL | PL | RU | SL | CZ

Technical information

EN | DE

Our WebApps

The following WebApps offer helpful calculations for selecting and sizing our differential pressure sensors.

Technical specifications

Measured quantity: Differential pressure
Optional: Static pressure, Temperature
Measured medium: High, middle and low pressure steam
Saturated and superheated steam
Temperature range: Standard: up to 450 °C
Optional: up to 650 °C
Pressure range: up to PN 320 (flanged) / ANSI #2500
upon request: welded design
Diameter range: DN 25 … DN 3000
1" up to 120"
Required inlet and outlet pipe straight runs: 7xD inlet, 3xD outlet
Material: Standard: 1.4404 (AISI 316L)
Other Options and custom materials: 1.4571, 1.5415, 1.7353, 1.7380, 1.4922

ASTM A 182 Gr. F1, F11, F12, F22, F91
Error limit k-factor: ±1% of measured value
Reproducibility: ±0,1 % of measured value
Measurement range: up to 1:40 (in relation to max. flow)
